Sample Comb : 10 samples
Number of Gels : 1-4 pcs
Number of Samples : 10~40pcs
Gel Thickness : Standard 1.0mm, optional 0.75 & 1.5mm
Sizes (W×D×H)(mm) : 180×130×130

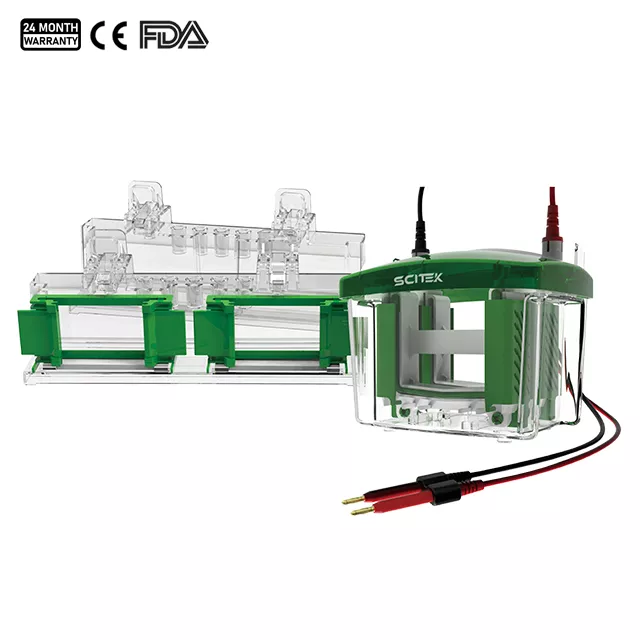

Vertical Electrophoresis Tank Features:

1. Completes 4 mini-gel electrophoresis experiments in one hour, increasing efficiency or meeting specific experimental needs.
2. Edge banding is permanently attached to the glass plate to ensure precise alignment and prevent gel leakage.
3. Special material electrophoresis comb does not inhibit gel polymerization reaction
4. Built-in ridges avoid air contact, thus reducing the formation of oxidized film and improving the success and reproducibility of experiments.
5. A parallel arrangement of the filling frames allows for simultaneous visibility of the two gels being filled, with spring-loaded rods and rubber gaskets providing a good seal.
6. Gel frames with cams ensure precise alignment on any horizontal plane.
