S224-02-KIT Digital plate bearing equipment, 500 kN
| CNR N. 92, CNR N. 146 METHOD B, ASTM D1195, ASTM D1196, BS 1377:9 |

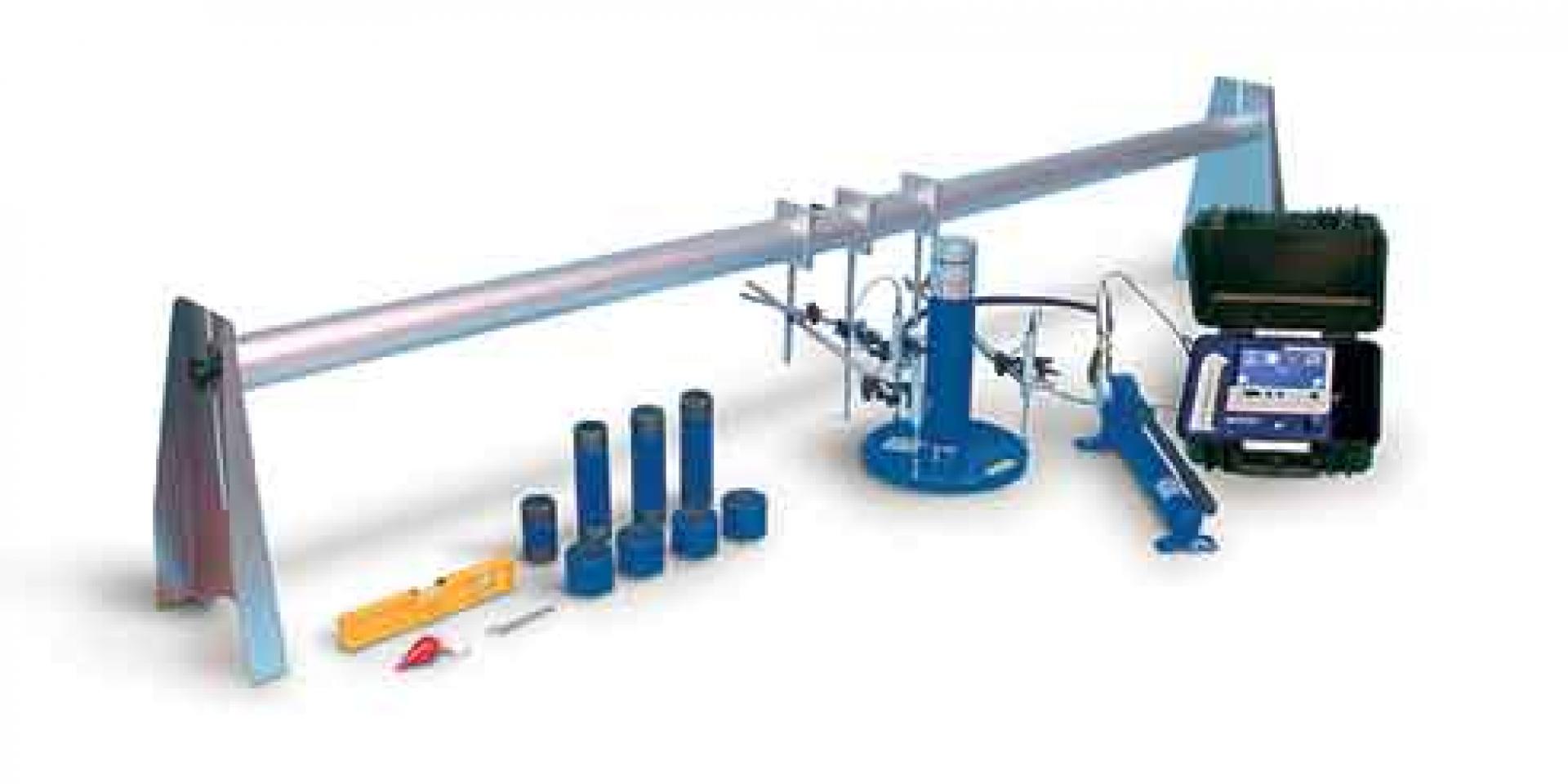

The Digital 500 kN Plate Bearing Tester is a high-capacity system for geotechnical and pavement testing. Equipped with three linear displacement transducers and the Cyber-Plus 8 Progress data acquisition system, it allows precise real-time measurement, visualization, processing, and storage of load and settlement data. Ideal for soil, road, and pavement evaluation.
Consisting of:
- S227-02 Hydraulic jack 500 kN capacity, complete with a hand pump, spherical seat, rubber pipe with fast connector, set of extension rods of different lengths, and carrying case.
- C116-09S Pressure transducer, connected to the pump.
- C405-15M Cyber-Plus 8 Progress touch screen for data acquisition, visualization, processing and storing, directly connected to PC or printer.
- S224-21N Software for test data processing
- S226-05 Load plate Ø 300 mm
- S226-06 Intermediate plate Ø 160 mm
- S222-03 Datum bar assembly, 2.5 m long, telescopic, aluminium made, adjustable in height, complete with base supports, plumb and spirit level.
- S336-14 n° 3 linear displacement transducers, 50 mm travel.
- S336-31 n° 3 Extension cables for transducer, 5 m long.
- S226-16 n° 3 articulated transducer supports with adjustment device.
- S335-15 n° 3 universal coupling pliers for transducers.
Weight: 110 kg approx.
If used with the loading plates (accessory) Ø 450, 600, and 760 mm, it meets also: ASTM D1195, D1196 and CNR N. 92.
