DETERMINATION OF LOSS IN MASS AND RESISTANCE TO HARDENING (TFOT)

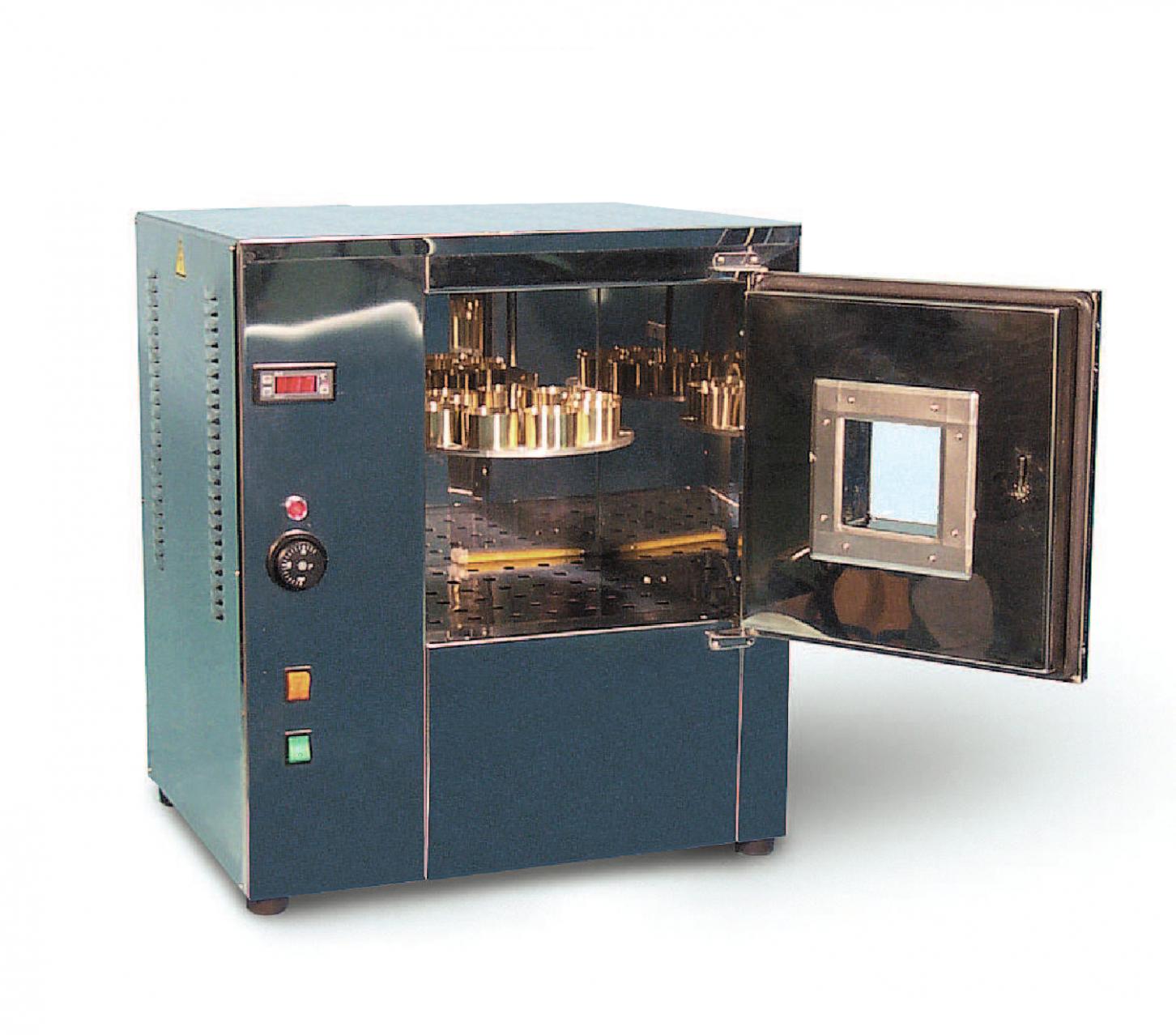

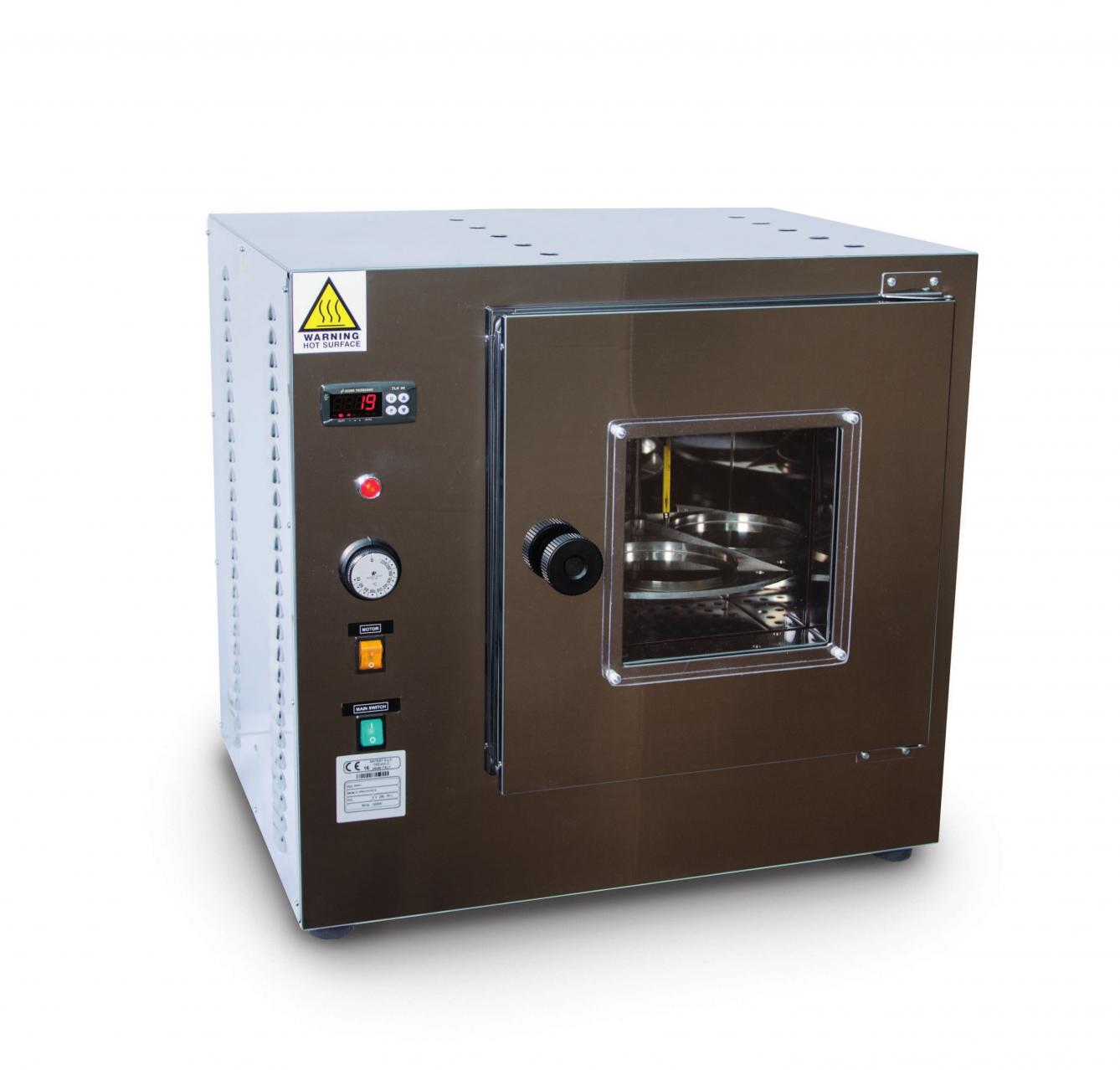

The internal chamber and external frame are all made of stainless steel, double wall insulation with fibreglass, double door.

Temperature control by digital thermoregulator. The oven is equipped with a dual safety thermostat to prevent accidental overheating. The plate rotates at 5-6 rpm. Supplied complete with glass control thermometer ASTM 13C, +155 to +170°C subd 0.5°C.
The oven is supplied “without rotating shelf and accessories”, which must be ordered separately.
Power supply: 230 V 1 ph 50 Hz 1500 W
Internal dimensions: 330x330x330 mm
Outside dimensions: 460x450x700 mm
Weight: 40 kg

THE OVEN MOD. B064 CAN BE EQUIPPED IN TWO VERSIONS, WITH THE FOLLOWING ACCESSORIES:
B064-01
Rotating shelf complete with 9 containers diameter 55×35 mm for the “Determination of Loss on Heating” to EN 13303 / ASTM D 6 / BS 2000 / NF T066-011 / AASHTO T47 / CNR N° 50 / NF T066-011 – AASHTO T47 Standards.

B064-02
Rotating shelf, complete with 2 containers diameter 140×9.5 mm for the “Determination of Thin Film” to EN 12607-2 / ASTM D1754 / AASHTO T149 / UNE 7110 Standards.
As alternative:
B064-02SP Rotating shelf, same as B064-02, but complete with 4 containers.
